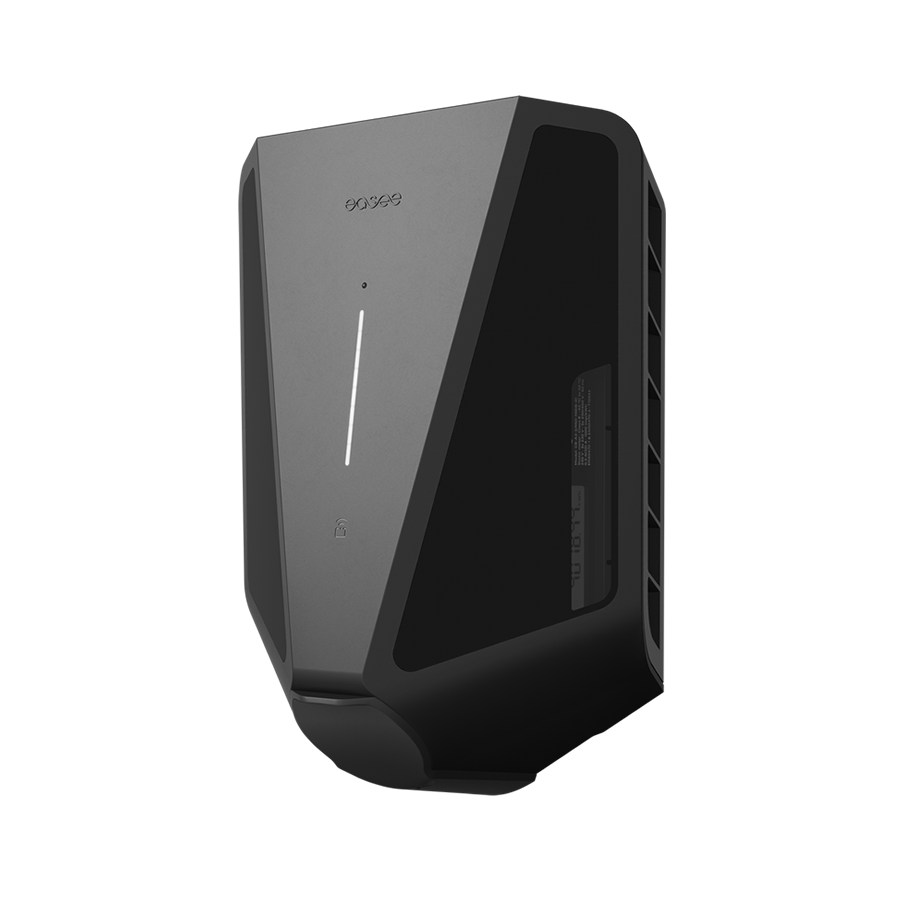

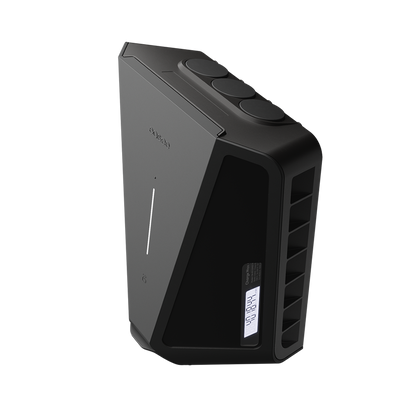

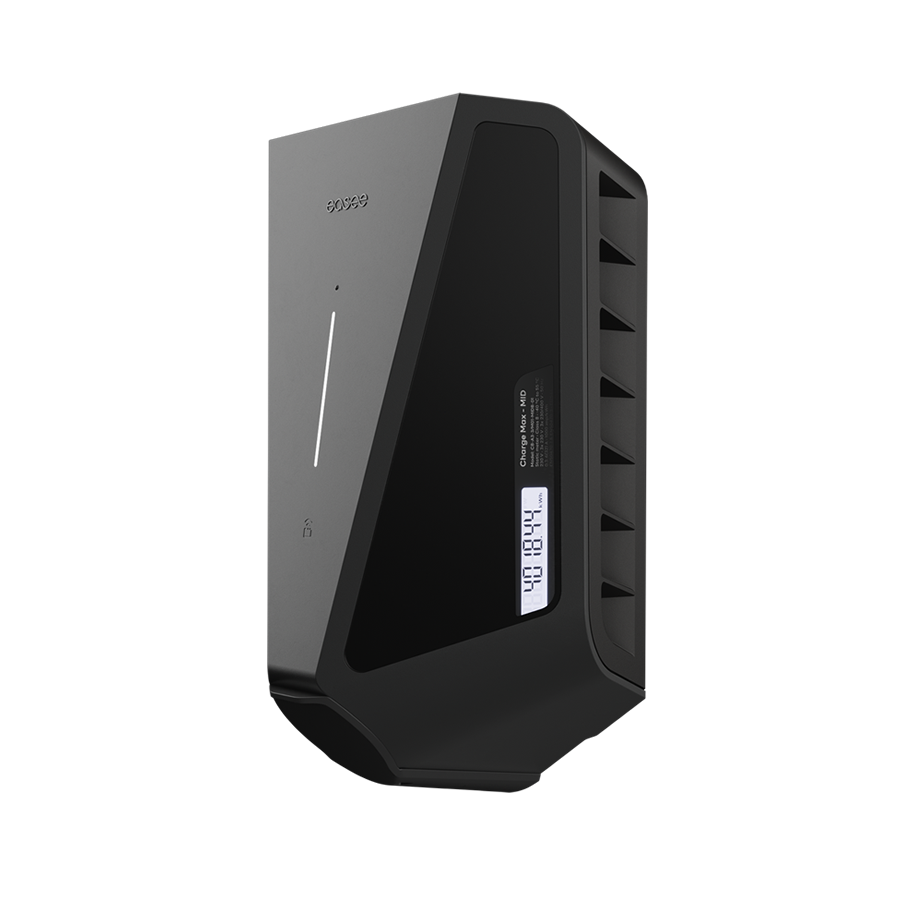

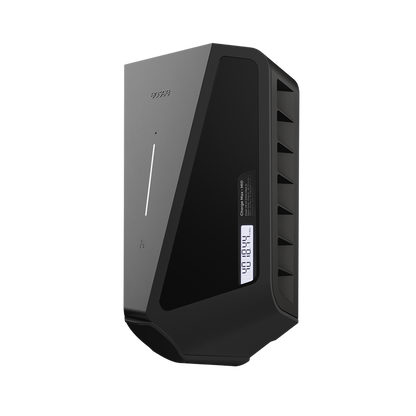

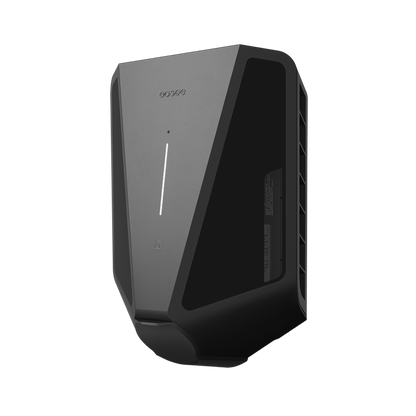

Easee Charge Max 22 kW MID Socket

Easee Charge Max 22 kW MID Socket

€735,00 EUR
Adviesprijs: €1.028,00 EUR €735,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Order before 9 PM for free shipping today

Waarom kiezen voor ons?

✔ Op werkdagen voor 21:00 uur besteld, vandaag verzonden*

✔ Gratis verzending in Nederland & België

✔ 30 dagen bedenktijd

✔ Ophalen mogelijk

✔ Achteraf betalen mogelijk

Plus- en minpunten

  • Compact formaat & licht in gewicht

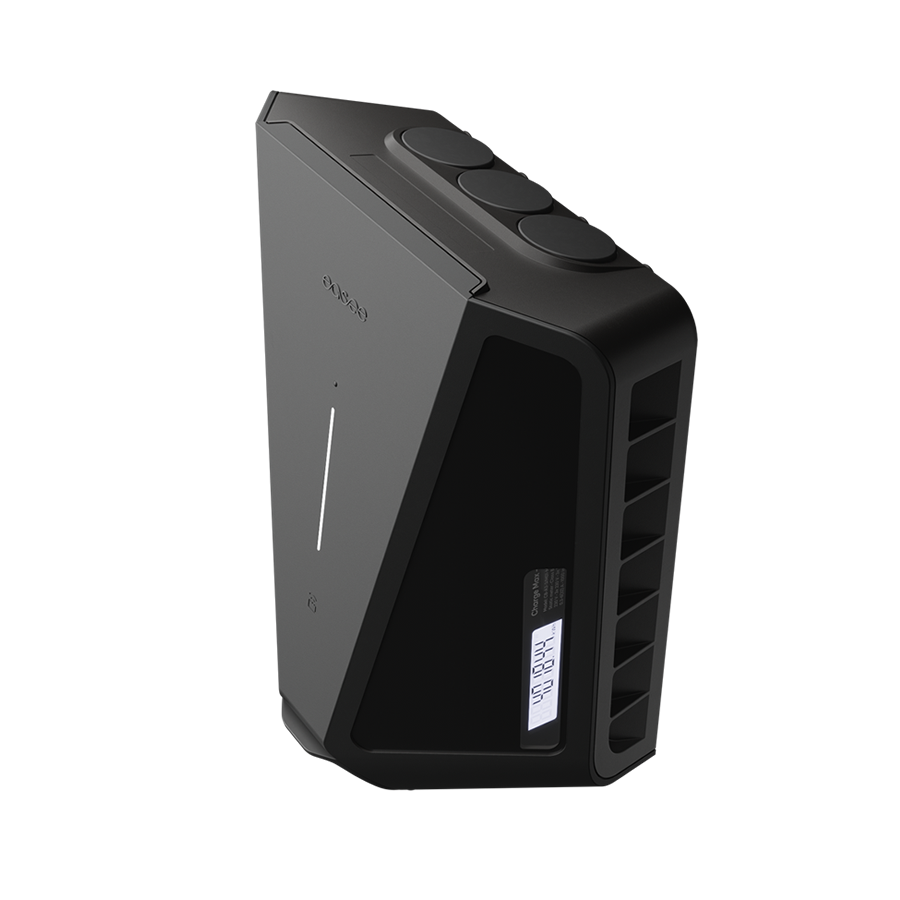

  • Display
  • MID-gecertificeerde meter
  • Toekomstbestendig en up-to-date
  • 5 jaar garantie
  • Geen vaste kabel

Product Description

Charge Max: The ideal EV home charger for precise control and billing

MID-certified:
With an integrated MID-certified energy meter, Charge Max allows you to accurately calculate and easily settle charging costs, for example with your employer. This fully complies with EU directives for measuring instruments, ensuring reliable measurements.

Powerful and flexible charging:

  • Supports charging up to 22 kW on a 3-phase circuit (32A).
  • Suitable for charging up to 7.4 kW on a 1-phase circuit (32A).

All-in-one solution:

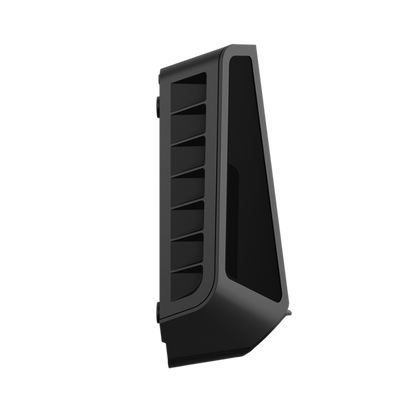

Charge Max is compatible with all electric vehicles, phases, and electricity grids. Furthermore, installation is easy: an existing charger can be seamlessly replaced by reusing the already installed backplate.

Smart energy balance:
Dynamic phase and load balancing optimize energy consumption and protect your fuse from overload.

Choose Charge Max: future-proof, powerful, and perfectly tailored to your charging needs.

Specification

  • Dimensions (mm): H: 256 x W: 193 x D: 106
  • Operating temperature: -30°C to +40°C
  • Weight: 1.6 kg
  • Available in black*
  • Local load and phase balancing between a maximum of 3 chargers
  • Factory warranty: 5 years
  • Wi-Fi 2.4 GHz b/g/n
  • Bluetooth 4.2
  • Built-in LTE CatM1
  • OCPP 1.6J
  • Easee LinkTM 868 MHz Radio*

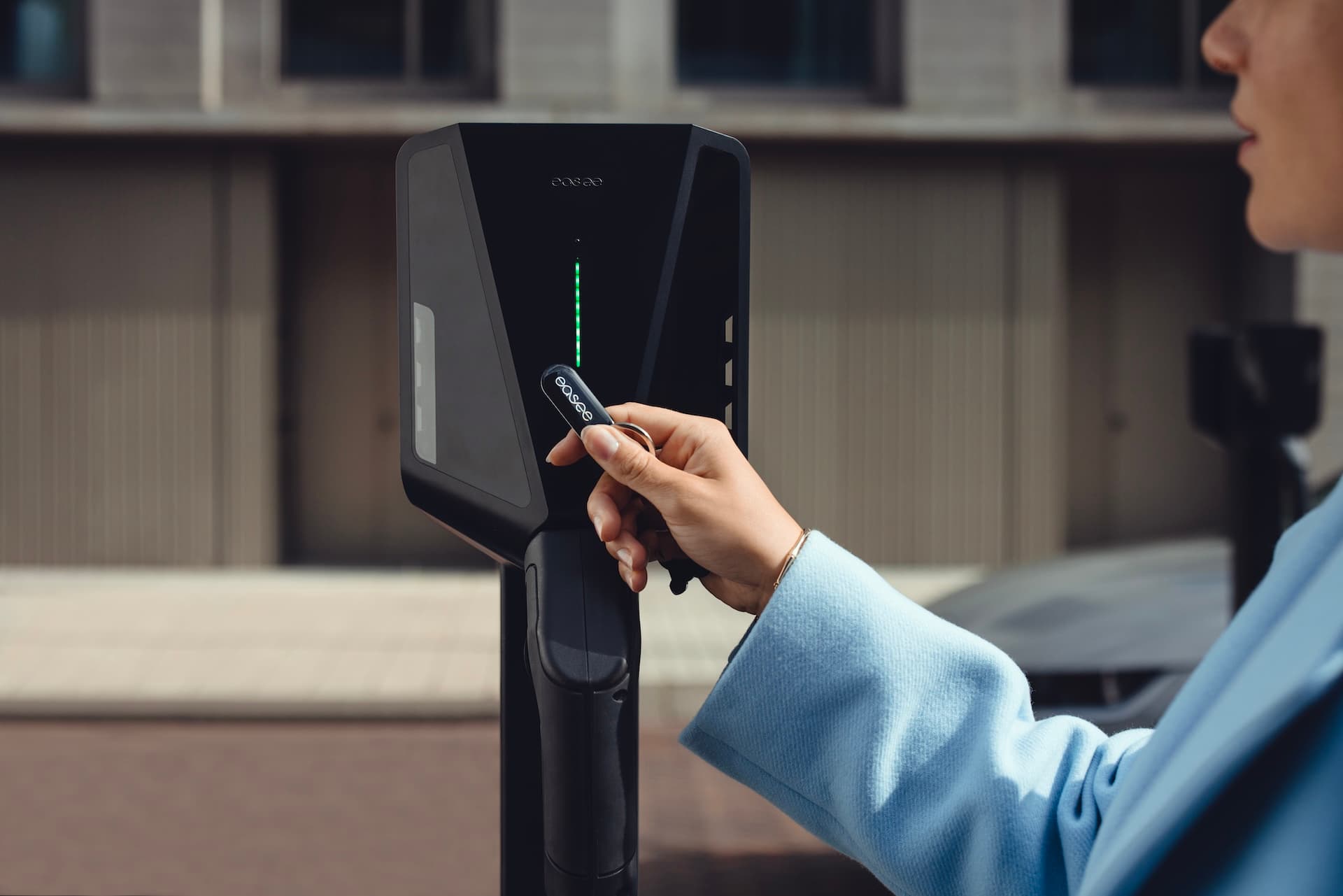

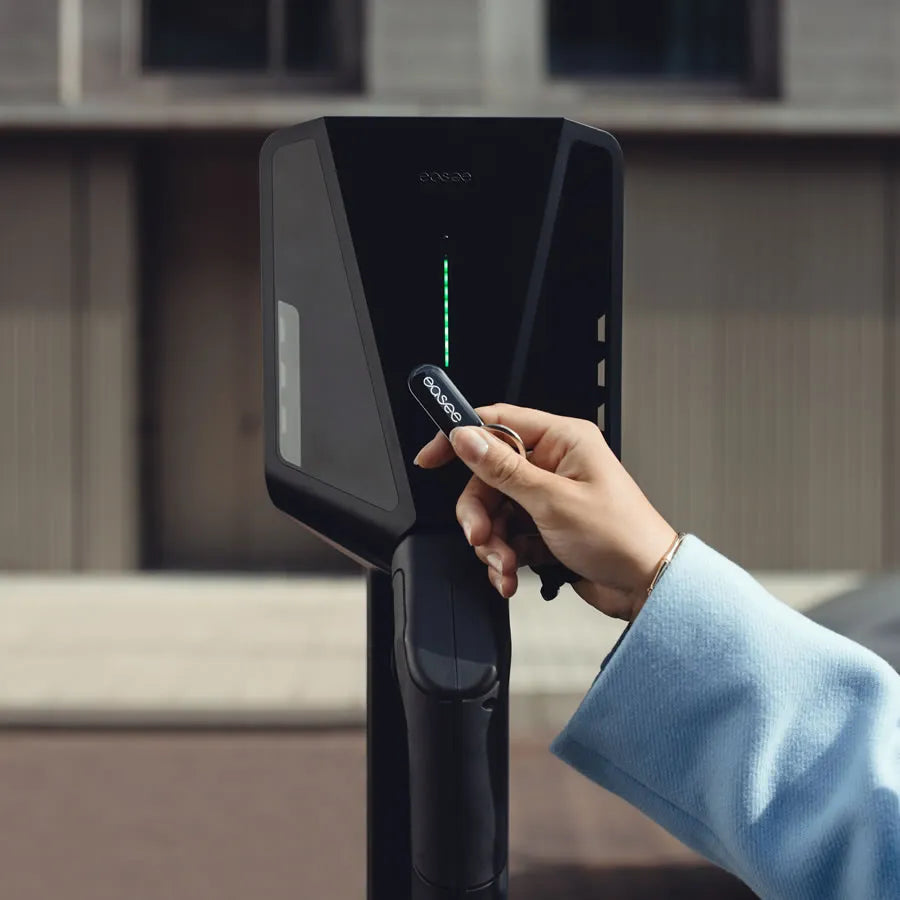

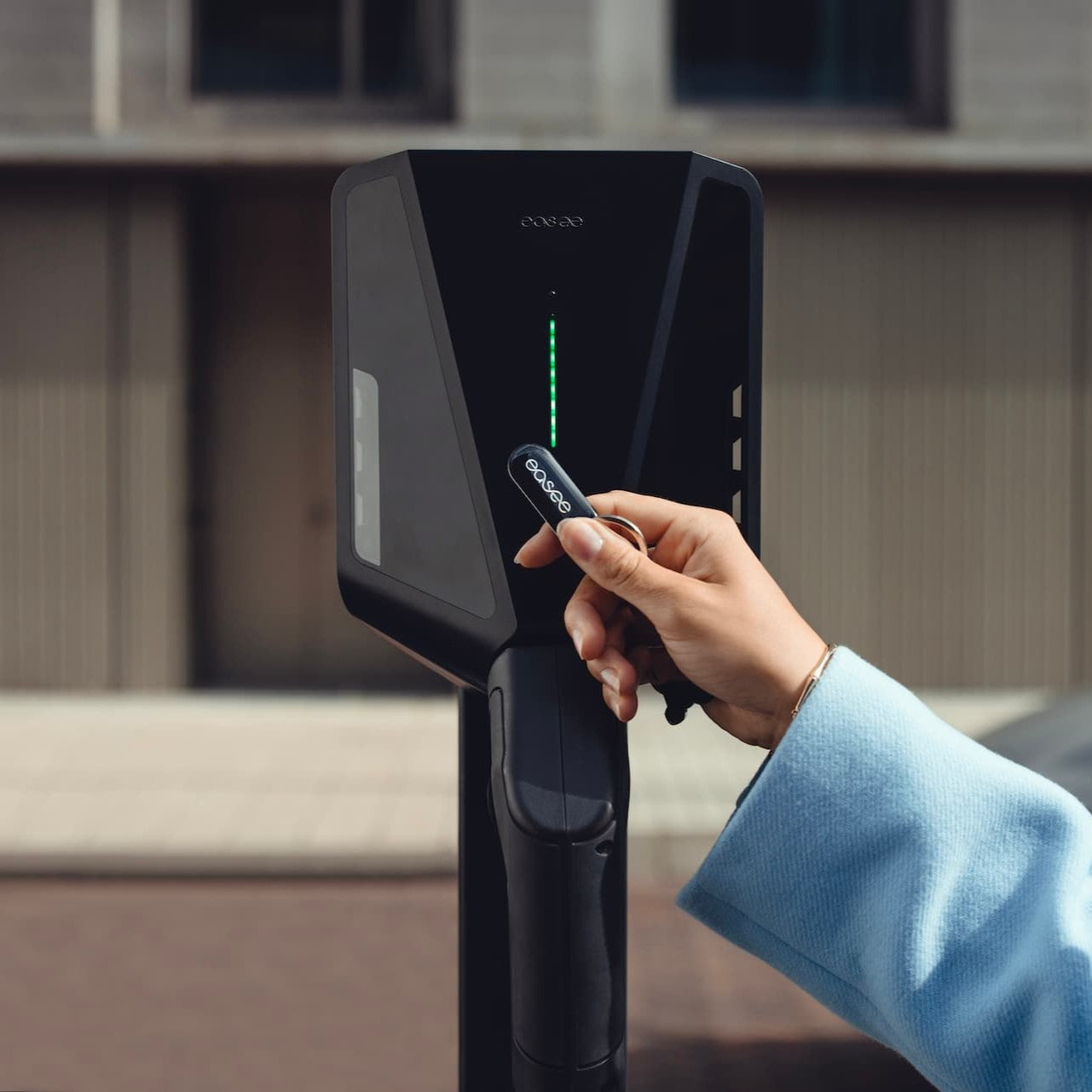

  • Built-in RFID/NFC reader for access control
  • Easee App for control and monitoring
  • Easee Control for online management of your charger(s)
  • Locking function and charging status with Apple Watch

*Easee LinkTM is a communication method between Easee products. It is based on radio signals and also – if available – on Wi-Fi.

Voltage: 3x 230 V / 400 V AC (±10%)
Mains frequency: 50 Hz
Mains voltage: TN, IT, TT

Charging Max. charging power:

  • 1-phase: 1.4 kW (6 A) – 7.4 kW (32 A)
  • 3-phase TN: 4.1 kW (6 A) – 22 kW (32 A)
  • 3-phase IT: 2.4 kW (6 A) – 12.7 kW (32 A)

Built-in power meter MID class B (±1%) according to EN 50470-3
Automatic adjustment of charging speed based on available current*
Automatic charging with solar energy*

*Equalizer required.

Protection:

  • Overload protection according to EN IEC 61851-1:2019
  • Integrated residual current protection type A 30 mA AC according to EN 60947-2, and 6 mA device for residual direct current detection (RDC-DD) according to IEC 62955, 9.9
  • Dust/water: IP54
  • Impact resistance: IK10
  • Overvoltage category: III

Theft protection:

  • The charging cable can be permanently locked into the charging station
  • Padlock bracket for theft protection

Installation:

  • Configuration is easy to perform with the Easee Installer App
  • Automatic detection of power grid (TN, IT, TT)

Documents:

Simplify the charging point installation process by purchasing it through slimmelaadpunt.nl. Let the professionals handle the installation for you, hassle-free. Only available in the Netherlands. For more information about installation click here!



User manual

Download PDF

Documents

Charge Max Installation Guide

Charge Max Product Sheet

Charge Max User Guide

View full details

  • Easee Charge Max is a smart charger that automatically adapts to all electric cars, currents and power grids. The EV charger is packed with technology and safety features, but is very easy to use.

  • Smart charging

    Manage your EV charging with the Easee app to schedule sessions during off-peak hours, access real-time data, and receive wireless updates.

  • Safety and Efficiency

    The Easee detects power requirements for efficient charging and includes essential safety features such as earth leakage protection and cable locking.

  • Scalable and sustainable

    The Easee charging stations are also expandable: the MAX version can be expanded to up to 3 charging points.

1 3
Easee Charge MAX MID 22kw - Slimmelaadpunt.nl

FAQs

Solar Charging and Easee Chargers
Charging your vehicle with solar power is a great way to utilize your photovoltaic (PV) system, more commonly known as solar energy. With the Easee charging points, you can efficiently charge your vehicle using solar power when there is sufficient sunlight.

Adjusting Performance with the Easee App
Easee charging points offer flexible performance adjustments, which can be managed by the owner via the Easee app. You can set the charging current from 6 A up to the maximum value set by your installer.

The Easee Advantage
One of the key advantages of Easee charging stations is the capability for automatic and dynamic phase compensation. This feature enables seamless charging from just 1.4 kW up to 22 kW (with a maximum of 11 kW for the Easee Lite model). Unlike most other charging stations that start at 3.7 kW, Easee chargers can efficiently utilize solar energy even when your PV system generates less power or when sunlight is limited.

An Automated Solution for Efficient Charging
To implement an automated charging solution with Easee chargers, an additional energy management device is required. This device measures incoming electricity, household consumption, and the PV system's energy values. Based on this data, the Equalizer communicates with your charging station via the Easee Cloud or locally, determining the necessary minimum values of generated PV energy. This communication sends commands to start and stop the charging process and to choose between 3-phase or 1-phase charging based on available solar power.

The connection typically uses the smart meter's P1 port. However, variations exist between different smart meter manufacturers and their protocol settings, as there is no standard on the market yet.

With an Easee charging point, you can charge up to ten times faster than with a standard wall socket. The charger utilizes the maximum available power and guarantees an optimal charging experience.

Yes! Our chargers fit all cars and any electricity grid. The charger adjusts automatically, so you can safely lean back and no longer have to worry about the car.

At some point, you may sell your house and want to transfer your Easee charger to the new owner. You can do this through the Easee app or the Easee portal.

Requirements:

  • You must be the site owner to transfer ownership.
  • You need the new owner's phone number.

Easee app

  1. Open the app and locate the charger you want to transfer to a new owner.
  2. Press the down arrow in the top right corner, then select Site settings.
  3. Press Moving out?
  4. Choose the country, enter the new owner's phone number, then select Transfer site.
  5. The new owner will be notified with instructions on how to proceed.

Easee portal

  1. Navigate to the location of the charger that will be transferred to the new owner.
  2. Select Administration.
  3. Select Invite user.
  4. Choose the country, enter the new owner's phone number, and then select Look up.
  5. Select the new owner's user role to Owner and send the invitation.
  6. The new owner will be notified with instructions on how to proceed.

Yes, all EVs on the market with a Type 2 connection can be charged with an Easee charger.

Yes. It has IP54 certification, plus 11 sensors and intelligent temperature measurement to keep you and your home safe.

It’s also designed and built in Norway, so the Easee should be able to withstand good old European weather.
